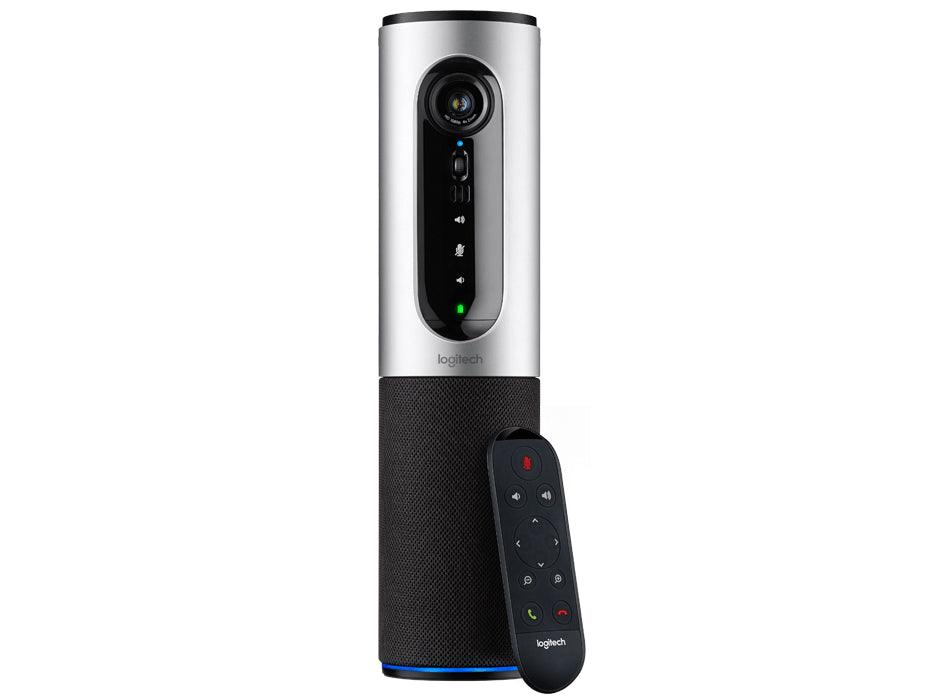

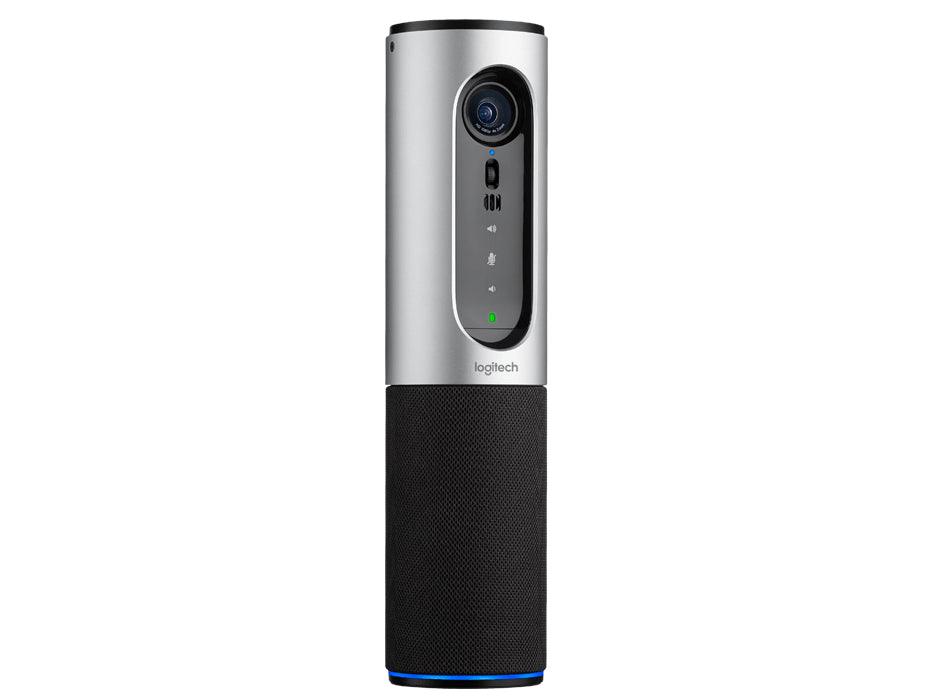

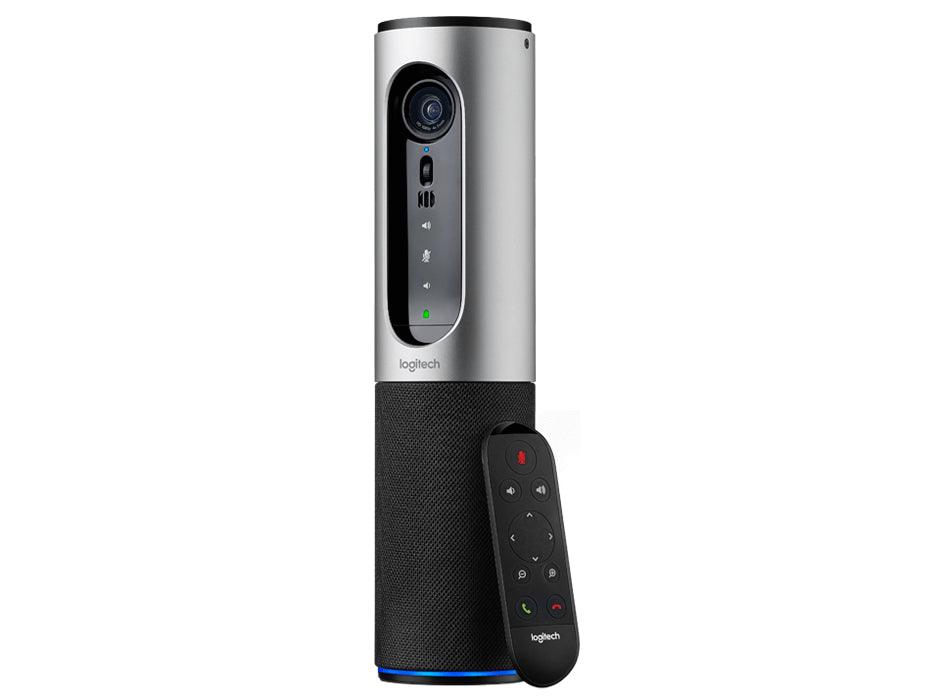

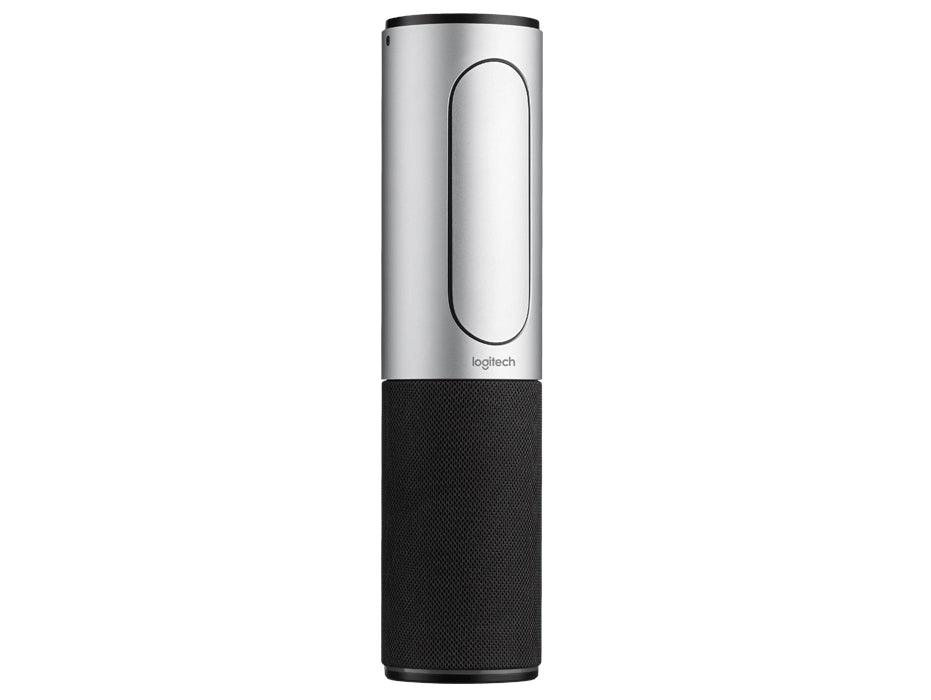

Camera Logitech ConferenceCam Connect

CONNECT
Optimized for Huddle Rooms

VIDEO CONFERENCING FOR SMALL GROUPS UP TO 6 PEOPLE

Simplify video conferencing so anyone can set it up and run a meeting anywhere. Make it affordable so you can outfit every conference room with video. Designed for small groups and huddle rooms, from 1 to 6 people, Logitech Connect is also compact and mobile so you can take it from room to room. Connect is always ready for your next video conference call.

• Perfect for small space, compact and light design
• Compatible for most of Video calling apps like skype, zoom, Fuze, Webex, Bluejeans, Vidyo and others.
• Premium camera lens for maximum quality to enjoy HD, clear, bright, and sharp video calling with accurate colors.
• Easy USB plug and play.
• Dailing into an audio conference? Already connected on your smartphone? Simply pair connect via either Bluetooth or NFC to enjoy outstanding audio clarity, volume and dynamic range.
• Designed for convenient portability, connect boasts an internal, rechargeable battery that can run video calls for up to 3 hours, and audio calls for up to 15 hours.

Technical Specifications

CAMERA
● Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
● H.264 UVC 1.5 with Scalable Video Coding (SVC)
● Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video
● 90-degree field of view with autofocus
● 4X digital zoom in Full HD
● Rightlight™ 2 Technology for clear image in various lighting environments (even low light)
● Digital pan, tilt and zoom from remote control or optional downloadable app
● Mechanical tilt
● ZEISS lens certification
● Camera LED for active streaming indication

SPEAKERPHONE
● Integrated full duplex speakerphone with echo and noise cancellation
● 360-degree wideband audio with 12-foot (3.6 m) diameter range
● Bluetooth® and NFC enabled
● LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
● Controls for call answer/end, volume mute

Microphones (Tx):
● Two omni-directional microphones supporting 3.6 m diameter range
● Frequency response: 100Hz – 16KHz
● Sensitivity: -34dB +/-3dB
● Distortion: <1% @ 1KHz at 65dB

Speakers (Rx):
● Frequency response: 140Hz – 16KHz
● Sensitivity: 89dBSPL +/-3dB at 1W/0.5M
● Max output: 91.5dBSPL at 0.5M
● Distortion: <5% from 200Hz

REMOTE CONTROL
● Dockable remote control for camera/speakerphone functions
● 10-foot (3 meters) range

CABLES
● USB
● Power adapter with cord

WIRELESS SCREEN MIRRORING AND CONNECTIVITY FEATURES
● Screen mirroring through WiFi connection to the device
● Android® or Windows 8.1 compatibility for screen mirroring
● HDMI connector for TV output
● Rechargeable battery supports up to 3 hours videoconferencing or screen mirroring time; 15 hours for Bluetooth audio. Time to fully charge battery (from AC power, device idle): 3 hours
● Battery rechargeable through AC power or USB (not powered through USB)
● 1.8 m/6-foot detachable USB cable for PC or Mac based videoconferencing
● Works with most UC and videoconferencing applications
● Professional-grade certifications
● Kensington security slot

TALK TIME/BATTERY LIFE
● Up to 15 hours (3 hours for videoconferencing and screen mirroring)

RANGE
● 12 foot diameter range (3.7 meters)
● 360-degree sound

SYSTEM REQUIREMENTS
Windows® 7, 8.1 or 10
Mac OS® X 10.7 or higher

Dimensions

WITH CLIP:
Height x Width x Depth: 304.2 mm X 75 mm X 75 mm
Weight: 766 g

REMOTE:
Height x Width x Depth: 41 mm X 128 mm X 9 mm
Weight: 32 g

USB CABLE:
2 m

POWER ADAPTER WITH CORD:
3 m
