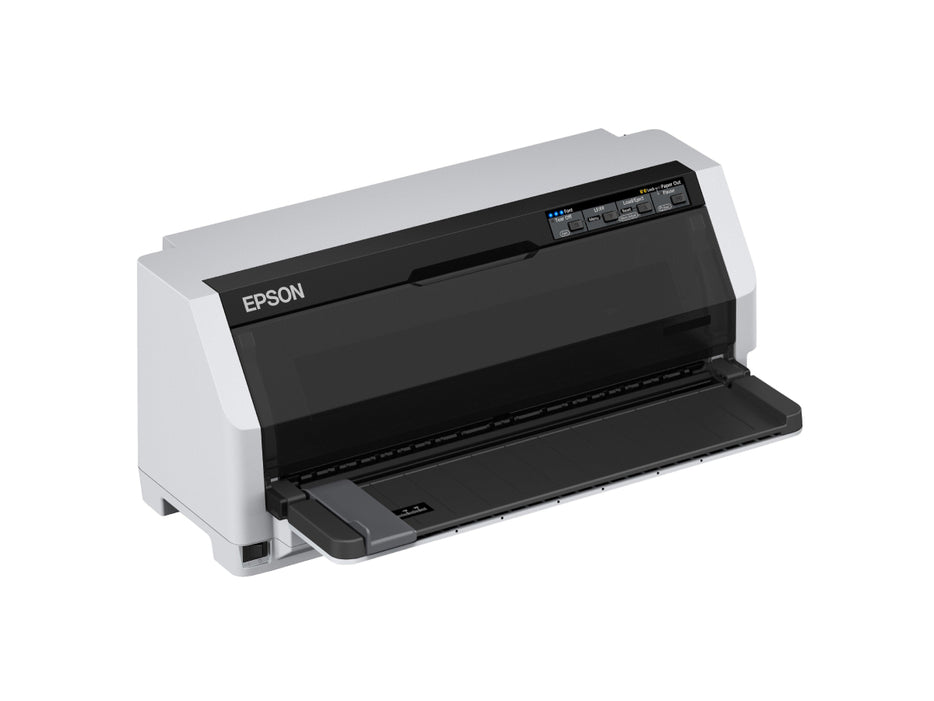

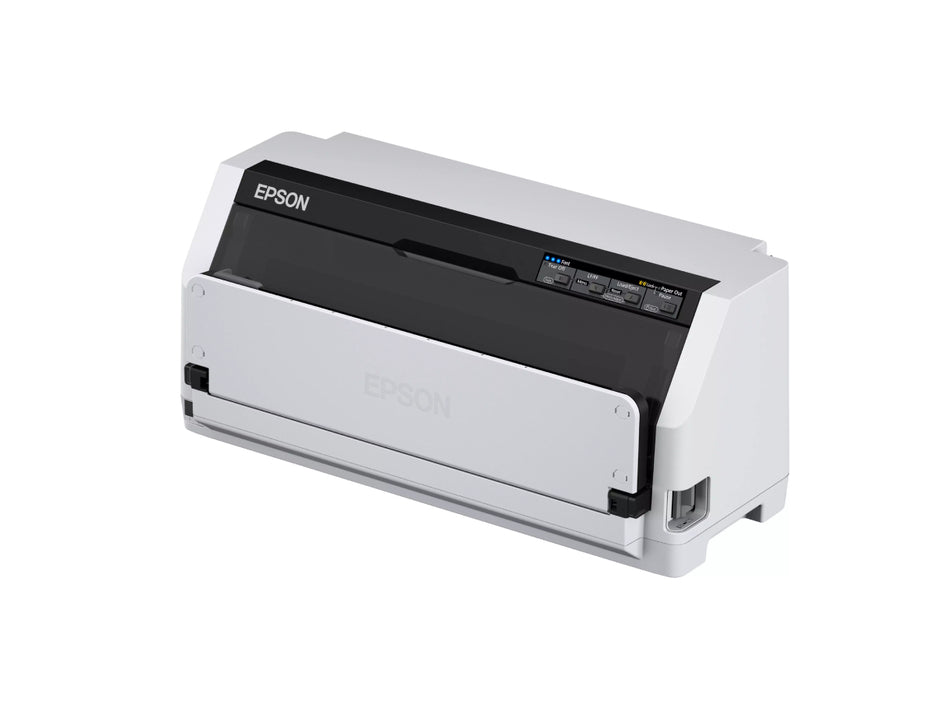

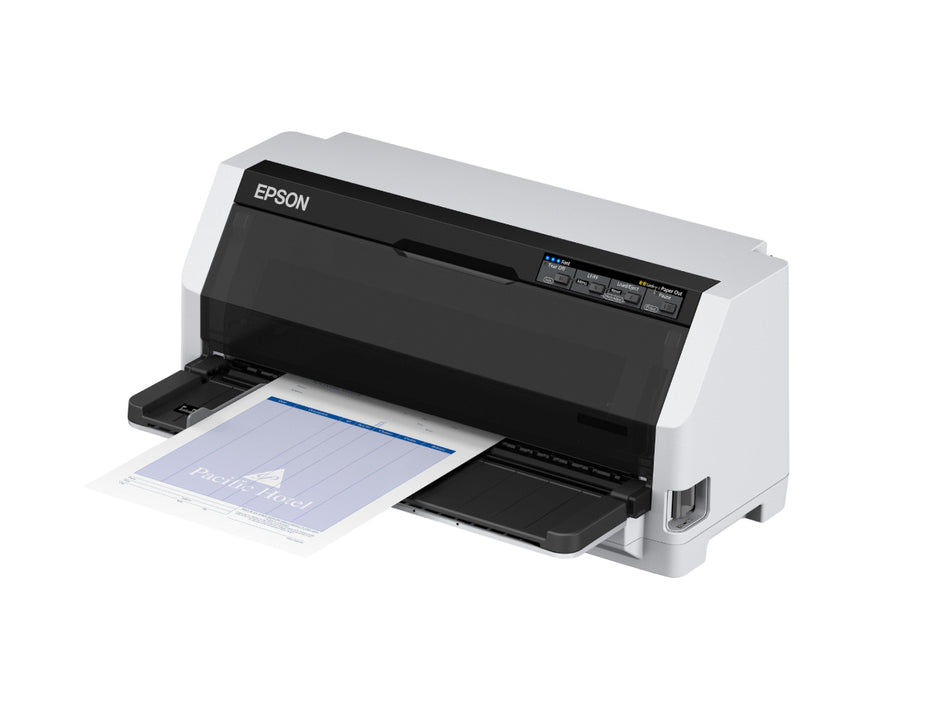

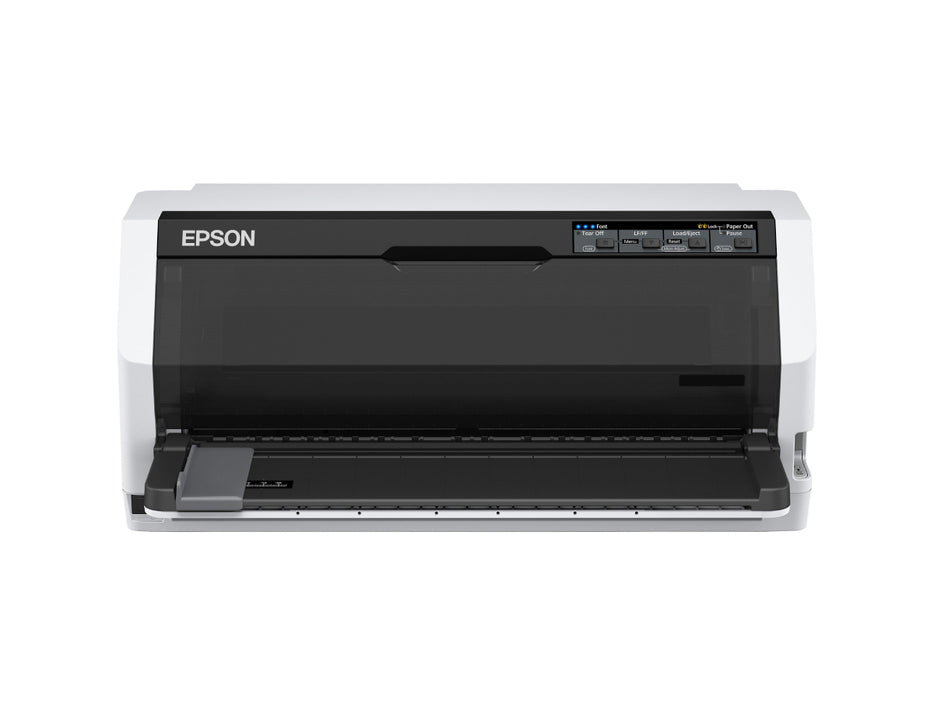

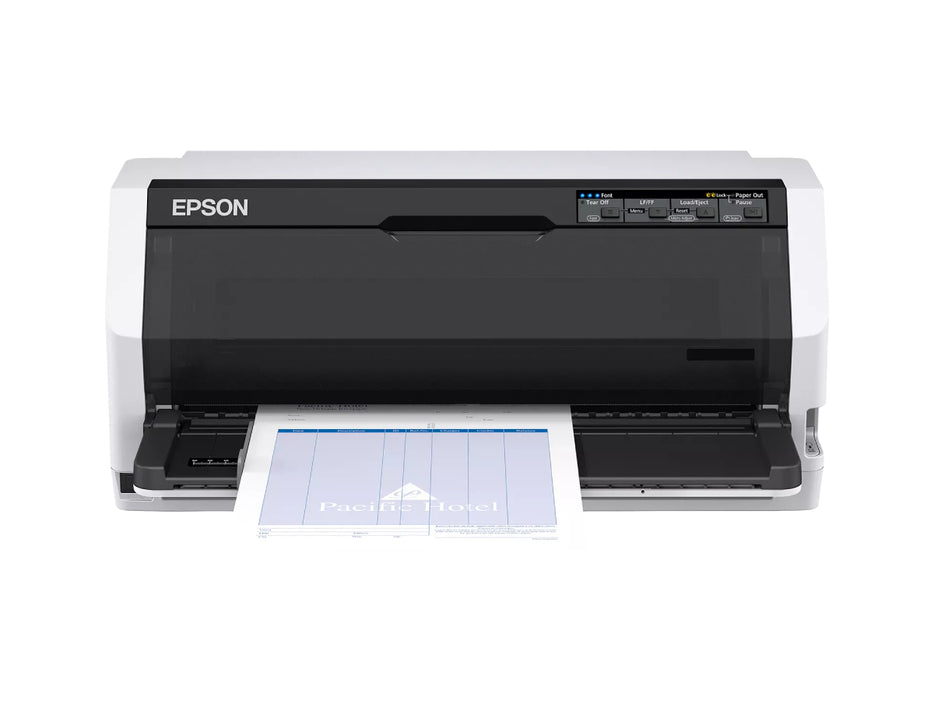

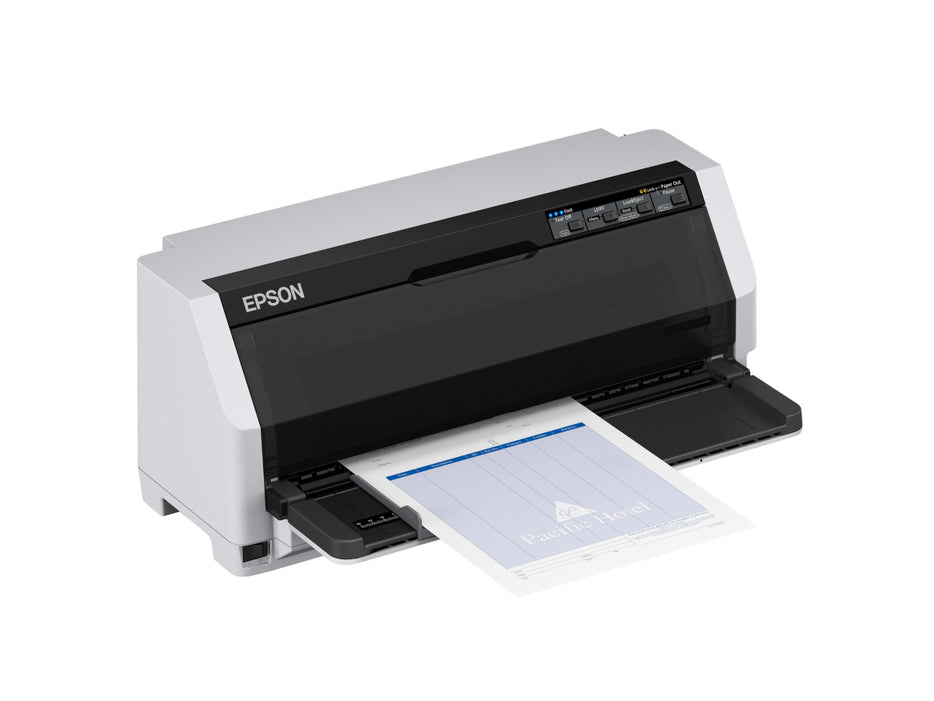

Epson LQ-690 II 24-pin dot Matrix Printer

The Epson LQ-690II Dot Matrix Printer is the ideal choice for businesses that demand reliable, high-performance printing in demanding environments. Building on Epson's legacy of quality and innovation, this 24-pin narrow carriage printer delivers sharp, clear text and graphics at remarkable speeds, making it perfect for busy offices, retail outlets, and industrial settings where efficiency is key.

Key Features:

• Superior Print Quality: Equipped with advanced 24-pin technology, the LQ-690II ensures precise and detailed printing, producing documents with sharp text and clear graphics. This level of quality is perfect for printing important business documents, multi-part forms, and labels that require clarity and professionalism.

• High-Speed Printing: The LQ-690II offers an impressive print speed of up to 487 characters per second (cps), allowing you to complete large printing tasks in a fraction of the time. This makes it an excellent choice for environments where speed and productivity are essential.

• Durable and Reliable: Designed to withstand heavy-duty use, the LQ-690II boasts an impressive print head life of up to 400 million strokes per wire and a mean time between failures (MTBF) of 20,000 hours. This ensures long-lasting performance and minimal downtime, even in the most demanding environments.

• Flexible Paper Handling: Whether you're printing on continuous paper, cut sheets, or multi-part forms, the LQ-690II offers versatile paper handling capabilities.

• Energy-Efficient Operation: The LQ-690II is designed with energy efficiency in mind, consuming minimal power during operation. This not only helps reduce operational costs but also supports your business's sustainability goals.

• Easy Integration and Compatibility: With multiple connectivity options, including USB 2.0 and Bidirectional parallel, the LQ-690II easily integrates into your existing IT setup. Its compatibility with a wide range of operating systems ensures smooth installation and operation.

• Reddot Winner 2023: The Epson LQ-690II was recognized as a 2023 Red Dot Award winner, a prestigious accolade highlighting its superior design quality. The Red Dot Award is one of the most respected design competitions globally, celebrating products that set new standards in design and innovation. The LQ-690II stood out for its blend of functionality, efficiency, and aesthetics, making it an ideal choice for businesses seeking reliable and well-designed printing solutions.


Technical Specifications:

Printing

• Print Speed: HighSpeed-Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 366 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s
• Printing Method: Impact dot matrix
• Number of Pins:24 pins
• Number of columns:106 columns
• Pins: 24 Needles
• Barcodes:Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
• Carbon Copies:6 plus one original
• Character Tables:PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
• Printing Resolution:360 x 180 DPI

Paper / Media Handling

• Document Feed: Single sheet front, Continuous media rear, Paper output front
• Paper Formats: Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
• Paper Thickness Continuous Paper: 0.065 mm - 0.49 mm
• Paper Thickness Label Base Sheet: 0.16 mm - 0.19 mm
• Paper Thickness Label Total Sheet: 0.16 mm - 0.19 mm
• Paper Thickness Multi Part: 0.12 mm - 0.49 mm
• Paper Thickness Single Sheet: 0.065 mm - 0.15 mm

General

• Print Head Life: 400 million strokes per wire
• Mean Time Between Failures(MTBF): 20,000 hours
• Ribbon Life: Approximately 10 million characters
• Paper Handling: Supports continuous paper, cut sheets, and multi-part forms (up to 6 layers)
• Power consumption: 38 Watt, 3 Watt (standby)
• Product dimensions: 480‎ x 301 x 211 mm (Width x Depth x Height)
• Supported Temperature: Operation 5° C - 35° C
• Supported Humidity: Operation 10% - 80%
• Connectivity: USB 2.0, Bidirectional parallel
• Emulations: ESC/P2, IBM PPDS
• Weight: 6.8 kg
• Warranty: 12 months Carry in

Ideal For:

• Retail and Wholesale: Efficiently print receipts, invoices, and multi-part forms.
• Finance and Accounting: Generate detailed reports, forms, and financial documents.
• Government and Public Services: Produce clear and accurate official documents and forms.

The Epson LQ-690II Dot Matrix Printer is the perfect blend of speed, quality, and durability. Whether you’re handling high-volume printing tasks or need a reliable solution for detailed forms and labels, the LQ-690II delivers consistent performance that keeps your business running smoothly. Trust Epson’s legacy of excellence to meet your most demanding printing needs.
