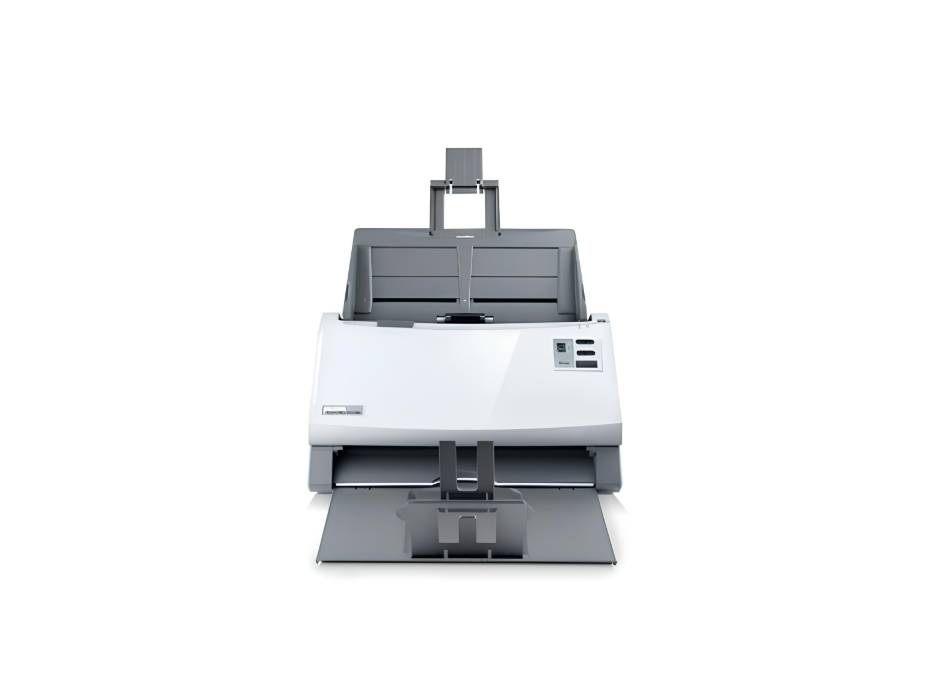

Plustek SmartOffice PS3180U Duplex Color Document Scanner

The Plustek SmartOffice PS3180U is an 80-page per minute, duplex color document scanner that is not only fast, but also reliable and cost effective. The automatic refinement of images and ultrasonic mis-feed detection ensures all of your important documents are accurately scanned. The PS3180U has one of the lowest Total Cost of Ownerships (TCO) of any high-speed document scanner. TCO is 40% less than other scanners in the 60-80 ppm segment.

Key Features:

• Duplex Scanning: Scan both sides of a document simultaneously, saving time and ensuring complete data capture.

• High-Speed Scanning: Achieve speeds of up to 80 pages per minute (ppm) and 160 images per minute (ipm) in both color and black & white modes at 300 dpi.

• Versatile Paper Handling: The ADF can accommodate up to 100 sheets of A4 paper, 30 business cards, and plastic cards up to 1.2 mm thick.

• Advanced Image Processing: Features like auto-rotate, blank page removal, and image compression ensure high-quality scans every time.

• Ultrasonic Multi-Feed Detection: Prevents double-feeding and ensures accurate scanning of each document.

• Robust Daily Duty Cycle: Designed to handle up to 8,000 sheets per day, making it perfect for high-volume scanning environments.

• TWAIN and WIA Compatibility: Easily integrate with various document management and imaging applications.

Specifications:

• Image Sensor: CIS x 2 (Duplex Scanner)
• Light Source: LED
• Optical Resolution: 600 dpi
• Hardware Resolution:   600 x 1200 dpi
• Scan Modes

Color: 48-bit input, 24-bit output

Grayscale: 16-bit input, 8-bit output

B/W: 1-bit

• Scanning Speed

80 ppm/ 160 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait)

80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait)

45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait)

30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait)

• Scanning Area (W x L)

4 Buttons: Up, Down, Scan, Standby

9 function keys are all customizable.

• Action Button

4 Buttons: Up, Down, Scan, Standby

9 function keys are all customizable.

• Power Requirement: 24 Vdc/ 1.25 A
• Daily Duty Scan (Sheets): 8,000
• Interface: USB 2.0 x 1, USB 2.0 (Host) x 1
• Net Weight: 2.7 Kgs
• Dimensions (W x D x H): 318.7 x 230.7 x 228.3 mm
• Operating System

Windows XP / Vista / 7 / 8 / 10 / 11

macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x/ 14.x/ 15.x

Linux compatibility is only available for system integrators.

• Hardware Requirements

Windows and Mac

2.0 GHz CPU processor or higher[1][2][3]

[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher

[2]Support Mac INTEL and M1 based processor

[3]Compatibility is not available with PowerPC

• Bundled Software

Plustek DocAction

Plustek DocTWAIN

Plustek MacAction

Plustek ICA

• Built-in OCR

Plustek OCR (For Windows)

Plustek DocOCR (For Mac)

• 1 Year Warranty
