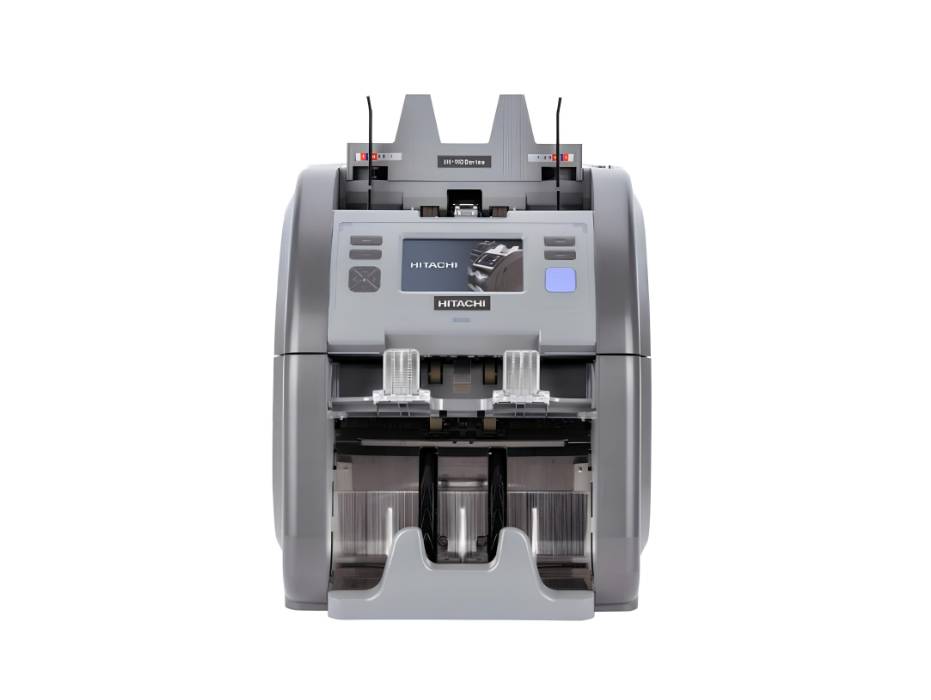

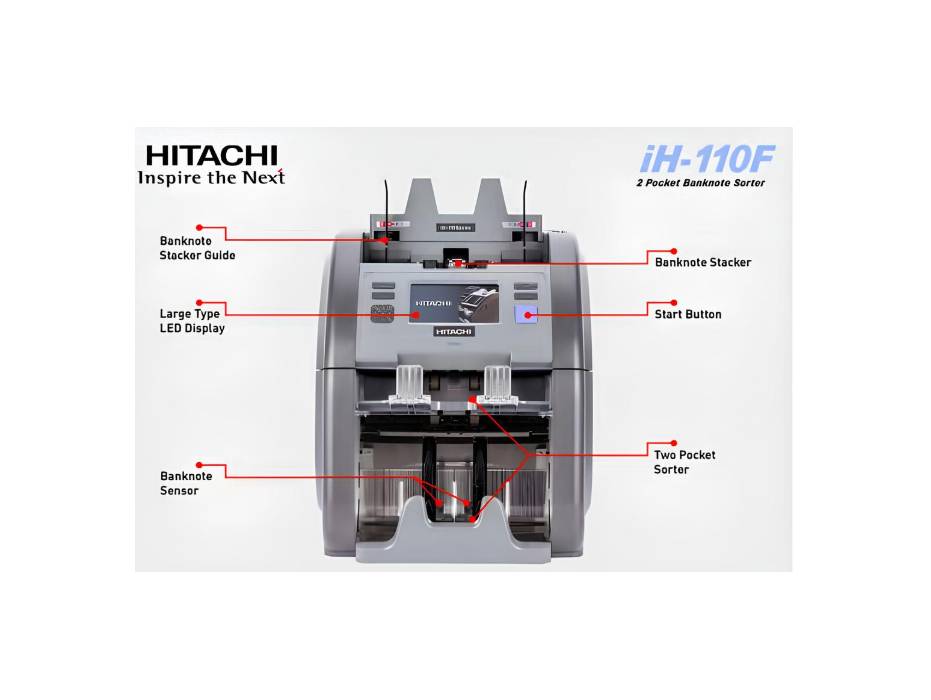

Hitachi IH-110F Series Cash Counting Machine

The Hitachi: iH-110F Currency Sorter is an intelligent and reliable banknote counter that uses image processing technology to recognize banknotes and discriminate denominations. The iH-110F features Full-Color Imaging with Dual CIS scanning, which scans both sides of the bills to reduce unwanted rejects. The 2-pocket design, with a stacker and a reject pocket, allows the iH-110F to count and off-sort without stopping. Having a reject pocket allows operators to perform daily cash-processing jobs without interruption.

Key Features:

High-speed image processing technologies

• Full Color Dual CIS
• Capture and Record of OCR, MICR, and Barcode / Deposit full-color images
• Can be installed in more than 40 currencies
• Mix & Multi-currency mode (Count mixed currencies and automatic recognition)

Advanced sensor technologies

• Equipped with a range of counterfeit detection technologies.
• Reliable fitness sorting
• Excellent tape detection performance

User-friendly system

• 2 Teller mode indicator and Multi-user mode available
• 4.3 Inch (109 mm) Full-color touch screen
• Easily look up all the sensor data
• Simple and easy operation
• Easy maintenance

Specifications:

• Currency: Up to 40 currencies, 16 currencies (Mix & Multi)
• Operating Speed (can be installed in more than 40 currencies): Value Counting with counterfeit detection, Fitness sorting with counterfeit detection, Capture and Record: OCR, MICR, Tickets, etc, Capture and Record: Full-color image with OCR
• Pocket Capacity: Hopper, Reject Pocket, Stacker
• Display: 4.3 Inch (109 mm) Full-Color LCD Touch Screen
• Mode: Mix(Face, Orientation) / Different Denomination(Face, Orientation) / Count / Serial No. / Fitness / etc
• Dimensions (W/D/H): 300 x 320 x 345 mm
• Weight: 14.5 kg
• Interface: LAN(Giga), USB(H), USB(S), RS232C

• Supply: 100 – 240V ±10%, 1.2A – 0.6A, 50/60Hz
• Sensor info: Full-Color dual CIS: 8 Images, IR transmission, IR reflection, RGB, Thickness(Tape) /Double detection sensor (12 Channel / 2 Channel), UV Reflection(4 Channel), Transmission(4 Channel), Fluorescence (4 Channel)
• Options: External LCD display /Thermal printer
• Warranty: 1 year
